¶ Description
Advanced 4G LTE GPS Tracker With High-Capacity Battery, Multiple Interfaces, and CAN Reading Functionality.
- Internal Sensitive Antennas
- Backup Battery 800 mAh
- LTE CAT1 Modem
- Dual SIM
- Overvoltage Protection Up to 500V and Inputs Protection Up to 350V
- 3 Universal Inputs (Digital, Analog, Frequency, Impulse, or Tachometer)
- 2 Digital Outputs
- Interfaces: RS-232, RS-485, CAN, and 1-Wire
- MODBUS Support
- Bluetooth 4.0 (compatible with v5.0)
¶ Characteristics

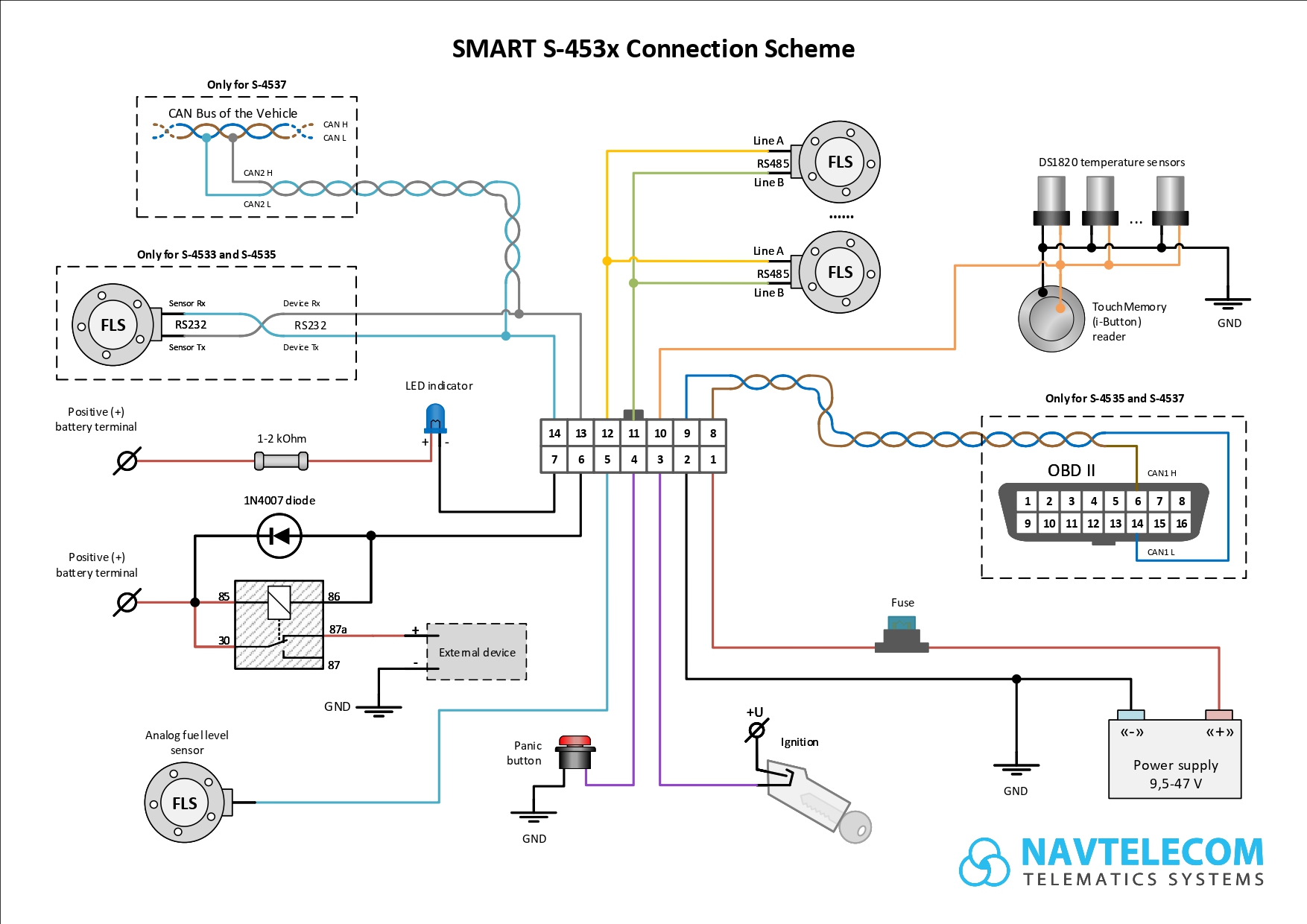

Device Characteristics Table¶ Wiring
Click Show to See the Wiring Scheme
To View the Scheme in Better Quality You Can Open It on a Separate Page or Download the PDF File
¶ Documentation
Datasheet
Connection Recommendations¶ Firmware
Firmware Go to the List of Firmware for the Device in the DRC System¶ Programs
¶
NTC Configurator
Main Program for Device Configuration.
Documentation Program Description and Settings Description for Each Device Model
Mobile App
NTC Control Mobile Configurator for Devices
