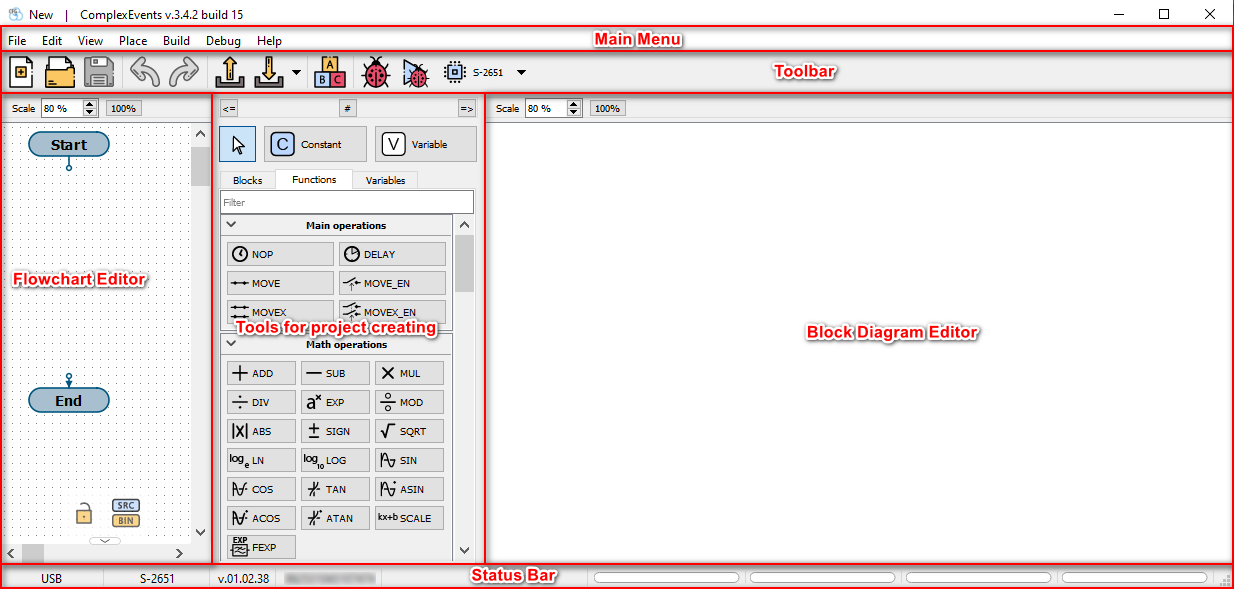

Application is divided into the following areas: Main Menu, Toolbar, Status Bar, Main Area.
Main Menu contains options for interaction with the application.
Toolbar duplicates the most frequently used menu items, can be hidden (menu item View – Toolbar).
Status Bar displays information about connected device and necessary recourses for the project performance.
Main Area of the application contains:
- Project flowchart editor.
- Function blocks (functions) diagram editor for a particular block of the flowchart.
- Section with elements for creating a project diagram (between editors).
- Additional tabs – errors, build output, break points (displaying is controlled with the View menu).
