¶ Description
Basic 2G Dual-SIM GPS Tracker With Backup Battery, 1-Wire, RS-232/RS-485 Ports, and Bluetooth for Connection of Fuel Level Sensors and Other Additional Equipment.
- Internal Sensitive Antennas
- Backup Battery
- 2G Modem
- Dual SIM
- Overvoltage Protection and Inputs Protection Up to 200V
- 3 Universal Inputs (Digital, Analog, Frequency, Impulse, or Tachometer)
- 2 Digital Outputs
- Interfaces: RS-232, RS-485, and 1-Wire
- Bluetooth 4.0
¶ Characteristics

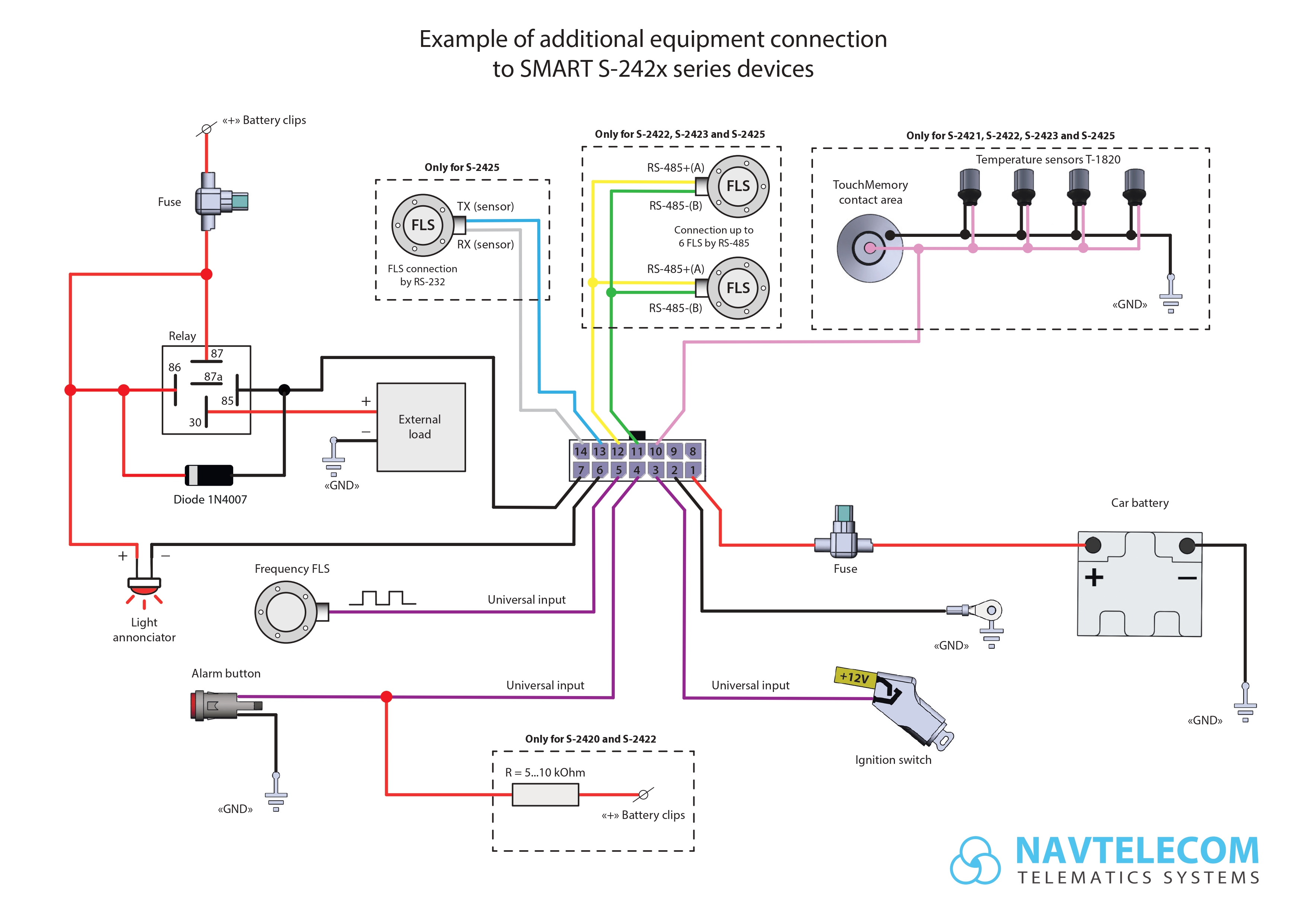

Device Characteristics Table¶ Wiring
Click Show to See the Wiring Scheme
To View the Scheme in Better Quality, You Can Open It on a Separate Page or Download the PDF File
¶ Documentation
Datasheet
Operations Manual
Connection Recommendations¶ Firmware
Firmware Go to the List of Firmware for the Device in the DRC System¶ Programs
¶
NTC Configurator
Main Program for Device Configuration.
Documentation Program Description and Settings Description for Each Device Model
Mobile App
NTC Control Mobile Configurator for Devices
NTC Control LITE Lite Version of NTC Control
