¶ General Information
For stable data reception from the sensor, it is recommended to configure the sensor to output data at an interval of every 10 seconds or more frequently. If using a setting with less frequent data output intervals, the device may periodically "lose" information from the sensor in some situations.
¶ Configuration

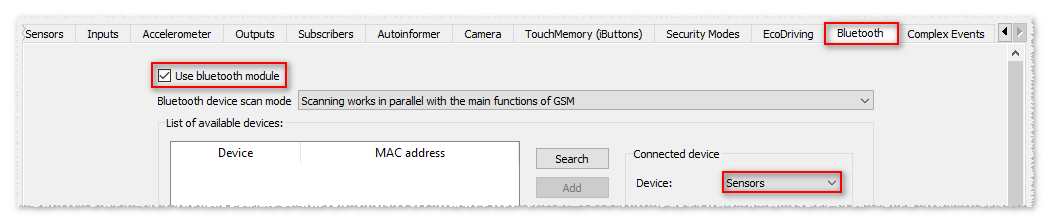

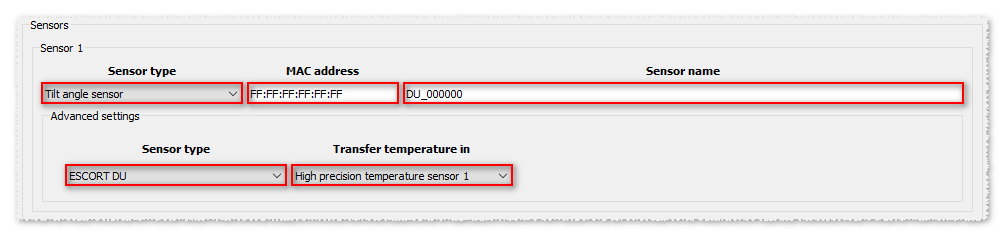

Sensor identification is performed by Sensor Name or MAC address.
If both fields are specified, priority is given to Sensor Name.
Command examples are given for configuration by MAC address.
If you need to configure by Sensor Name, then in the command examples you need to change:
(3,FF:FF:FF:FF:FF:FF,!)to(3,!,DU_000000)Replace in the command:
FF:FF:FF:FF:FF:FFwith the actual MAC address
DU_000000with the actual Sensor Name.
Example for Sensor 1:
*!EDITS BLUETOOTH:GLOBAL(1),CHANNEL1(SENS),SENS1(3,FF:FF:FF:FF:FF:FF,!),AS1(1),TS1(0,1),PROTOCOL:FLEX(30,&45[1]207[111]223[1]238[1]),USRPRM1(is1,sl1,ub1),USRPRM2(as1),USRPRM4(st1)
Example for Sensor 2:
*!EDITS BLUETOOTH:GLOBAL(1),CHANNEL1(SENS),SENS2(3,FF:FF:FF:FF:FF:FF,!),AS2(1),TS2(0,2),PROTOCOL:FLEX(30,&46[1]210[111]224[1]239[11]),USRPRM1(,,,is2,sl2,ub2),USRPRM2(,as2),USRPRM4(,st2)
¶ Transmitted Parameters

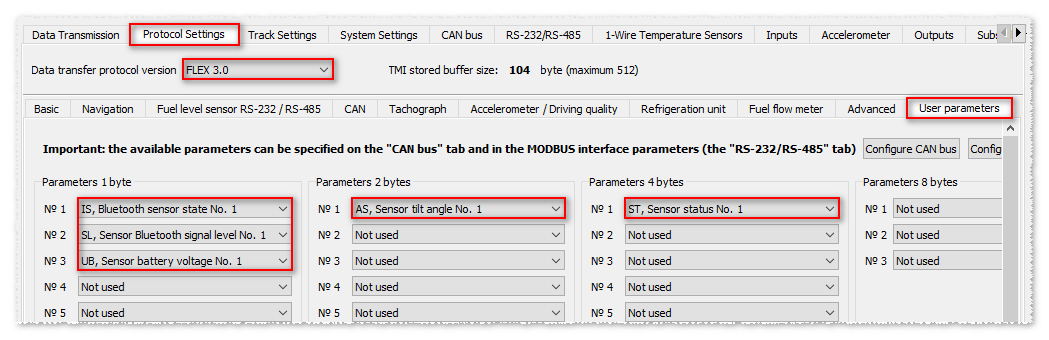

Placement of device parameters in the FLEX communication protocol is described in the table
| Sensor | Device | Note | ||
|---|---|---|---|---|
| Parameter | Values | Parameter | Transmitted | |
| Tilt angle | 0 .. 180 | Sensor 1 tilt angle as1 |
user_2u_1 |
The exact transmitted value depends on the sensor configuration |
| Rotation count | 0 .. 65535 | |||
| Trigger event | 0, 1, 2 | Sensor 1 status st1 |
user_4u_1 |
Which parameter is transmitted depends on the sensor configuration.Signed value conversion is required for correct display on the server |
| Rotation speed | -50 .. 50 | |||

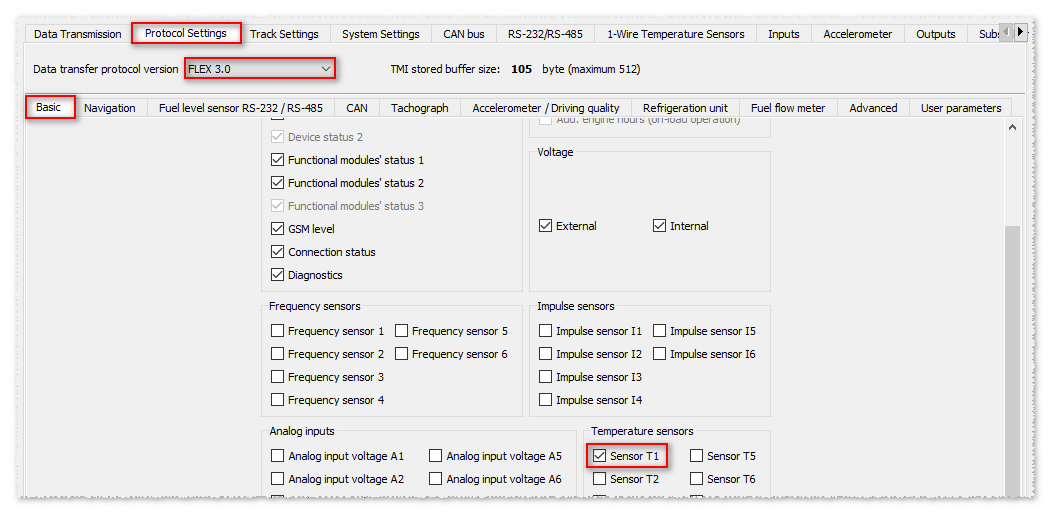

| Temperature | -70 .. 125 | Temperature 1 | temp1 |
If the sensor firmware does not support temperature transmission, 0 is transmitted |
| - | - | BLE sensor 1 status is1 |
user_1u_1 |
The parameter is generated by the device when receiving data from the sensor |
| - | - | Sensor 1 signal level sl1 |
user_1u_2 |
The parameter is generated by the device when receiving data from the sensor |
| Built-in battery voltage | 20 .. 40 | Sensor 1 battery voltage ub1 |
user_1u_3 |
Value 35 = 3.5 Volts |
