¶ Description
WARNING! Before operating the device, please review the important considerations for this model.
Compact 4G tracker with built-in GLONASS/GPS and GSM antennas and a built-in backup battery. RS-485 and Bluetooth digital interfaces are provided for connecting additional equipment.
- Built-in backup battery
- Built-in high-sensitivity GLONASS/GPS and GSM antennas
- 4G modem
- 1 SIM card
- Overvoltage protection up to 200 V
- 3 input lines
- 1 control output line
- RS-485 interface
- Support for MODBUS, Complex Events
- Bluetooth 5.0
¶ Specifications
Device Characteristics Table¶ Wiring

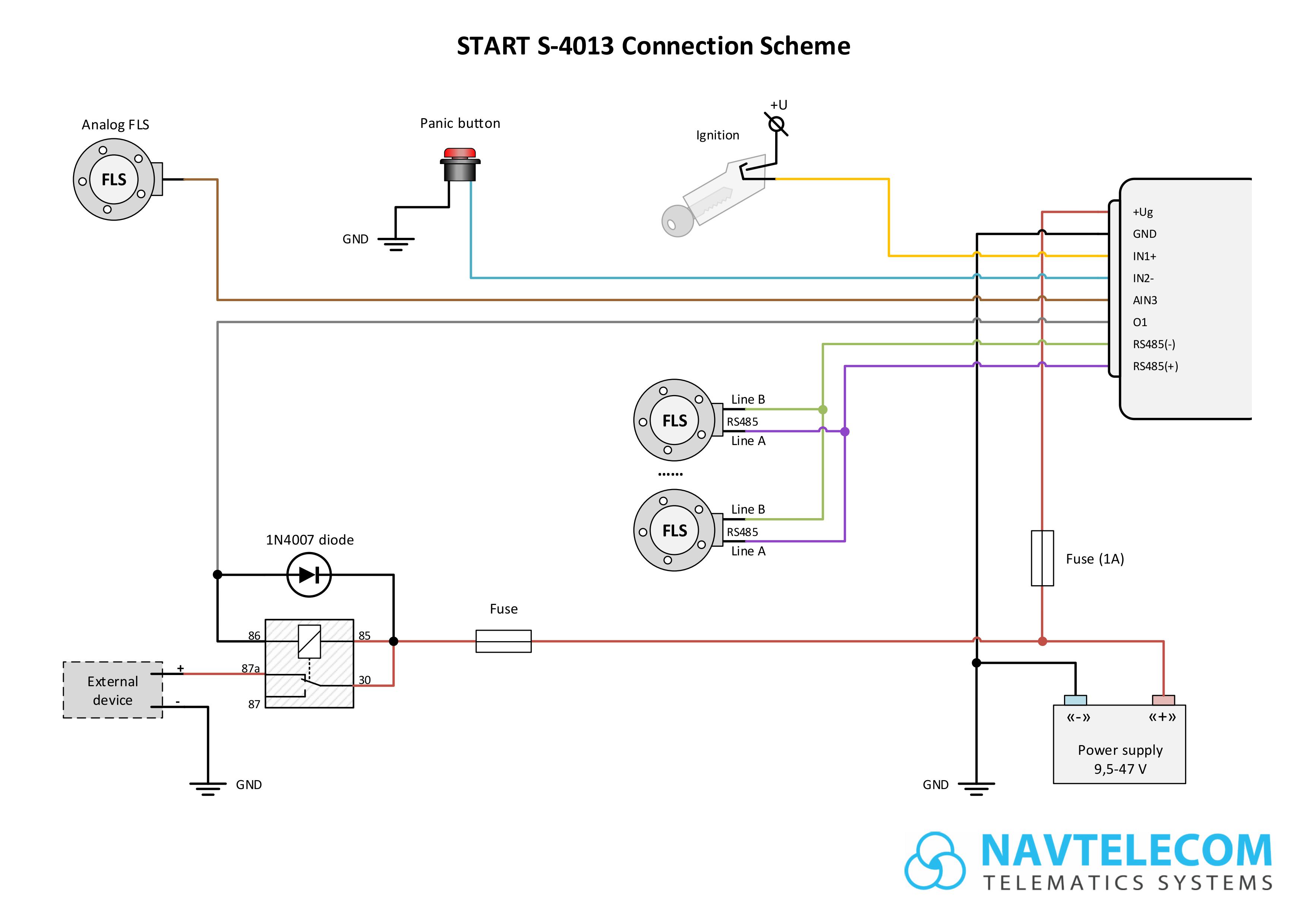

Click Show to view the wiring diagram
To view the diagram in high quality, open the image in a separate tab or download the PDF file
¶ Documentation
Datasheet
User Manual
Connection Recommendations¶ Firmware
¶ Software
¶
NTC Configurator
Main program for device configuration.
Download Download the latest version of the Configurator
Documentation Program description and settings for each device model
Mobile Apps
NTC Control Mobile Configurator for devices
