¶ Description
WARNING! Before operating the device, please review the important considerations for this model.
4G Tracker With Integrated GPS and GSM Antennas and an Internal Backup Battery. Supports Connection of External Equipment via RS-485 and Bluetooth.
- Built-In Backup Battery
- High-Sensitivity Built-In GLONASS/GPS and GSM Antennas
- 4G Modem
- Dual SIM
- Overvoltage Protection Up to 200V
- 5 Input Lines
- 2 Control Output Lines
- Interfaces: RS-485 and 1-Wire
- MODBUS Support, Complex Events
- Bluetooth 4.0
¶ Specifications

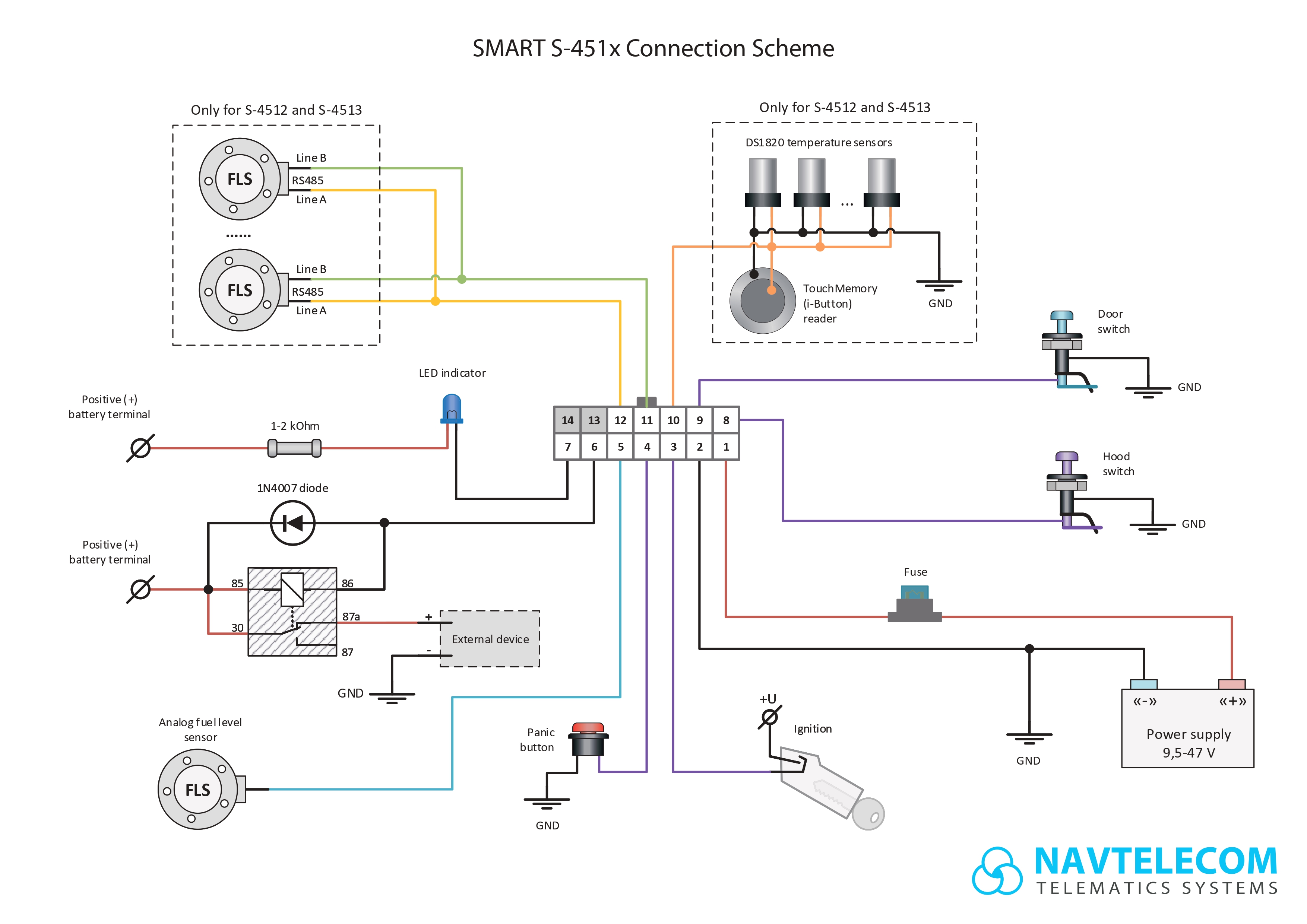

Device Characteristics Table¶ Wiring
Click Show to See the Wiring Scheme.
To View the Scheme in Better Quality, You Can Open It on a Separate Page or Download the PDF File.
¶ Documentation
Datasheet
User Manual
Connection Recommendations¶ Firmware
¶ Software
¶
NTC Configurator
Main Program for Device Configuration.
Download Get the Latest Version of the Configurator
Documentation Program and Settings Description for Each Device Model
Mobile Apps
NTC Control Mobile Configurator for Devices
